LC+ Hotspot Solutions - Active+ Software

LC+ has opted for MikroTik routers to implement its connection management service.

LC+ offers a range of autonomous and secured configuration solutions, one sole device can handle thousands of simultaneous connections, with ability to use a QoS and VPN connectivity.

LC+ also offers an entirely dematerialized Cloud solution associated with a local MikroTik router.

The LC+ recording server is the best solution to implement the compliance of your installation. It ensures the recording of all connections of each user over a period of one year as may be obligatory according to European and/or national legislation on the retention of data for electronic communications. Data traffic logs in relation with user identity can easily be consulted and exported in a text format. Through data vectoring, LC+ uses up to a 100 times less storage space compared to a conventional solution, allowing it to easily adapt to your network’s expansion and to greatly facilitate your backups.

Advantages

Connections recording compliant with european data retention directive (2006/24/EC).
Possibility to create separated networks (public access, enterprise).
Integrated and customizable captive portal.
No subscription^*, no adverts.
Possibility to save connections logs on remote FTP/SFTP server.
Possibility to sell tickets online (using credit cards accepted by PayPal API).
Integrated powerful firewall, VLAN management, QoS, etc.
Printing of tickets on any A4 printer or on a ticket printer (optional).
Optional: system configuration and customization.

* An annual update is necessary to renew the https certificate (price depends on the LC+ solution, please contact your reseller for more information).

Different solutions

Medium connectivity environment

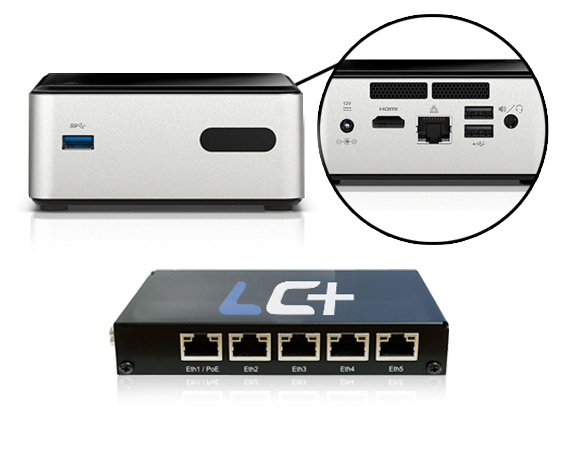

LCP-64 Package
This Hotspot solution allows you to set up a public and/or corporate WiFi network including the management of customer access (up to 64 simultaneous connections) with data recording.

This kit includes:

1 _x MikroTik router (model according to chosen options)
1 _x Micro server Intel NUC5CPYH (double core 2.16 GHz, 2 GB RAM, 30 GB SSD) with LC+ pre-installed
1 _x License LC+ 64 users (evolutive license)

Dense connectivity environment

LCP-256 Package
This Hostpot solution allows you to set up a public and/or corporate WiFi network including the management of customer access (up to 256 simultaneous connections) with data recording according to European and/or national legislation on the retention of data for electronic communications.

This kit includes:

1 _x VPN router MikroTik RB2011 with a 256 hotspot license included
1 _x Micro server Intel NUC5CPYH (double core 2.16 GHz, 2 GB RAM, 32 GB SSD) with LC+ pre-installed
1 _x License LC+ 256 users (evolutive license)

Strong to very strong connectivity environment

LCP-1000 to LCP-5000 Package
This Hotspot solution allows you to set up a public and/or corporate WiFi network including the management of customer access (up to a 1,000 at 5,000 simultaneous connections) with data recording according to European and/or national legislation on the retention of data for electronic communications.

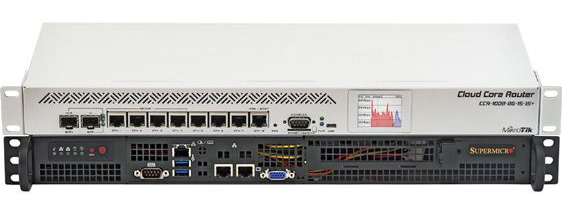

LCP-1000 Package
The MikroTik Cloud Core CCR1009-8G-1S-1S+ device is a high performance router (9 cores CPU, 2 GB of RAM) with 8 gigabit ethernet ports and 2 SFP ports (including a 10 Gbps SFP+).

LCP-1000 kit includes:

1 _x Router MikroTik Cloud Core CCR1009-8G-1S-1S+
1 _x licence LC+ HotSpot
1 _x Server 1U 19" SuperMicro 60 GB SSD with a pre-installed LC+ license (up to a 1,000 users)

LCP-2000 Package
The MikroTik Cloud Core CCR1016-12G device is a high performance router (16 cores CPU, 2 GB of RAM) with 12 gigabit ethernet ports.

LCP-2000 kit includes:

1 _x router MikroTik Cloud Core CCR1016-12G
1 _x licence LC+ HotSpot
1 _x Server 1U 19" SuperMicro 60 GB SSD with a pre-installed LC+ license (up to a 2,000 users)

LCP-5000 Package
The MikroTik Cloud Core CCR1036-12G-4S-EM device is a high performance router (36 cores CPU, 16 GB of RAM) with 12 gigabit ethernet ports, 4 SFP ports, 1 USB port and 1 serial port.

LCP-5000 kit includes:

1 _x Router MikroTik Cloud Core CCR1036-12G-4S-EM
1 _x licence LC+ HotSpot
1 _x Server 1U 19" SuperMicro (Intel® Core™ i5-3610ME) 120 GB SSD with a pre-installed LC+ license (up to a 5,000 users)

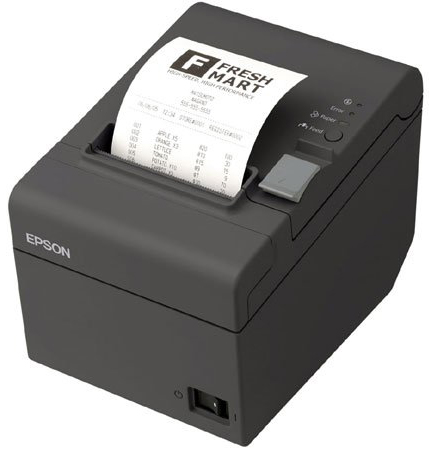

Ticket printers

Tickets printer LC+ recommends Epson TM-T20 ticket printers, they can also print QR-Code tickets.

Compatible with LC+ HotSpot solutions. Ultra fast and reliable printer, works with standard consumables (no need to buy overpriced manufacturer consumables).

Key features:

Thermal paper, width 80 or 53 mm, 83 mm diameter (very common and low cost)
Printing speed: 30 cm per second!
24 volts 1.8A power supply
Ethernet (RJ45) and USB connector
Warranty, maintenance and support

Customized solutions

We propose:

Hardware: servers, MikroTik routers
Software licenses: according to number of users
Pre-configuration service
Warranty, maintenance and support

Cloud computing service Cloud Service

LC+ also offers a full cloud computing solution in a virtualized secure storage space.
With this solution we provide all connection management and log storage services with a MikroTik router connected to the Internet.

Automatic authentication (no ticket)

Via Reverse SMS:
LC+ provides an authentication service by either receiving via SMS a unique login code, or by sending a code selected by the user, via SMS to his mobile phone number identified on the captive portal (identification of the user with his mobile phone number as a legal reference, for example in the case of a round the clock free automatic connection to a hotspot).

By bank card:
LC+ offers a payment service by PayPal.

Social network authentication:
LC+ offers an authentication service with various social networks.

Active Directory authentication:
LC+ allows users and operators to log on using the same Active Directory account they use to log on their Windows workstation.

Warranty and Quality

Hardware: 2 years warranty on NAS, servers and MikroTik routers (warranty MikroTik)
Software: 1 year warranty
